Predicting Percussive Events to Trigger Lighting Events on an Embedded Device

đź‘Ą Team

đź“ť Abstract

This project presents an end-to-end system that sychnronizes audio cues and visual actions. It processes audio in real-time using an Essentia-based C++ pipeline to detect percussive events through FFT analysis and employs a Kalman filter-based prediction engine to forecast events approximately 100ms into the future. The system communicates predicted events via MQTT to an Arduino Nano ESP32 embedded device, which uses SNTP/NTP synchronization for coordinated timing. Key results demonstrate real-time event detection, partially successful prediction lookahead of ~100ms, and synchronized event execution. This work demonstrates a study in the ability to predict audio events and schedule predictions for lighting events. It shows the feasibility but ultimate inability to match the performance of hardwired reactive systems in its current state.

đź“‘ Slides

🎛️ Media

1. Introduction

This project addresses the challenge of creating precisely timed lighting cues that synchronize with percussive moments in music. Unlike existing reactive systems that respond to audio events after they occur, this work explores predictive scheduling to enable visual synchronization despite network latency and processing delays.

1.1 Motivation & Objective

The goal of this project is to turn music into precisely timed lighting cues that “hit” with percussive moments. Current solutions fall into two categories: cheap, built-in auto modes that lack precision, and professional lighting solutions that require extensive manual programming. This work aims to bridge that gap by developing a system that can predict percussive events and schedule those predictions to trigger lighting events on an embedded device with precise timing.

The key objectives are to:

1.2 State of the Art & Its Limitations

Existing approaches to audio-reactive lighting primarily fall into two categories:

  1. Cheap volume-based or energy-based sound reactive systems: These systems use simple volume or energy detection to trigger lighting changes.

  2. Low-fidelity FFT-based reactive methods: These systems use frequency analysis but are reactive and are often have slow to respond or don’t capture hits of the music well.

  3. Professional Systems These systems are expensive and often require professional lights along with complicated configuration.

The key limitation to the first two systems is that they do audio processing on the lighting device to be reactive to the music. This limits the processing power availible to analyze the music. This leads to the volume or energy based solutions which do not do well to synchronize to music. FFT based solutions suffer from low processing power often lagging behind or having poor resolution that create visually unappealing systems. The key limitation of professional systems is the high financial barrier and the need for expert knowledge to configure them.

1.3 Novelty & Rationale

This work presents a new system that attempts to predict then schedule percussive events for lighting synchronization. The key innovation is the use of a prediction engine that forecasts percussive events approximately 1000ms into the future, allowing the system to compensate for network latency and processing delays. This improves the on device existing methods by utilizing the processing power of a host laptop for sophisticated musical analysis.

The system achieves this through:

The rationale is that by predicting events far enough in advance, the system can schedule lighting cues to arrive at the embedded device before the actual audio event occurs, compensating for network and processing delays to achieve precise synchronization.

1.4 Potential Impact

If successful, this approach could enable a new class of audio-reactive lighting systems that combine the affordability of consumer-grade solutions with the precision of professional systems. The predictive scheduling methodology could be extended to other time-sensitive applications requiring synchronization between distributed systems, such as multi-device audio-visual installations, interactive performances, or synchronized multimedia experiences.

The technical contributions around time synchronization and predictive scheduling in resource-constrained embedded environments could also inform future work in real-time distributed systems and edge computing applications.

1.5 Challenges

Several significant challenges must be addressed:

  1. Real-time processing constraints: The system must process audio in real-time without pre-analysis, requiring efficient streaming algorithms that can keep up with audio input rates (44.1 kHz).

  2. Prediction accuracy: Predicting future percussive events relies on detecting periodic patterns, which may not always be present in music. Many hits can be missed, and the system is reliant on the assumption of periodicity.

  3. Time synchronization: Achieving sub-40ms synchronization between a host laptop and an embedded device over a network requires precise clock synchronization and low-latency communication protocols.

  4. Network latency compensation: MQTT communication introduces variable latency (typically 100-250ms), which must be predicted and compensated for through advance scheduling.

  5. Embedded device constraints: The Arduino Nano ESP32 has limited computational resources and must handle time-critical event scheduling while managing communication tasks.

1.6 Metrics of Success

The project is evaluated across four dimensions:

  1. Accuracy of hit detection and prediction: Comparison of detected and predicted hits against manually annotated ground truth, measured by:
    • Number of matched hits within tolerance windows (40ms and 250ms)
    • F1 scores comparing hits vs. ground truth, predictions vs. ground truth, and hits vs. predictions
    • Mean, standard deviation, and maximum timing errors
  2. Time synchronization accuracy: Measurement of:
    • Mean offset between host and embedded device clocks
    • Round-trip latency of MQTT communication
    • Delay and latency statistics

  3. Execution precision: On-device measurement of the difference between scheduled execution time and actual execution time, including mean, median, min, max, and standard deviation of execution delays.

  4. Visual synchronization: Qualitative assessment of the visual appearance and perceived synchronization between audio events and lighting responses.

Professional lighting design systems use sophisticated algorithms to analyze audio. One such system created by limbic media is call the maestro system. This proprietary system reacts to audio to autonomously drive lighting. More information on their system can in the maestro system description

Beat or tempo retrieval is a well studied music information retrival (MIR) subject. These methods are similar to the percussive event detection that I implement in this project. One such implementation is BeatNet, which provides real time beat detection. Originally this was going to be used instead of a custom analysis pipeline however the project was pivoted due to the difference between tracking the beat and tracking percussive events. Links to the BeatNet paper and github are availible.

Instrument specific information retrieval is also a well studied problem in MIR. The instrument sum module makes use of instrument ranges that are well studied. Many websites and articles were referenced when building this module. An example chart is provided below in.

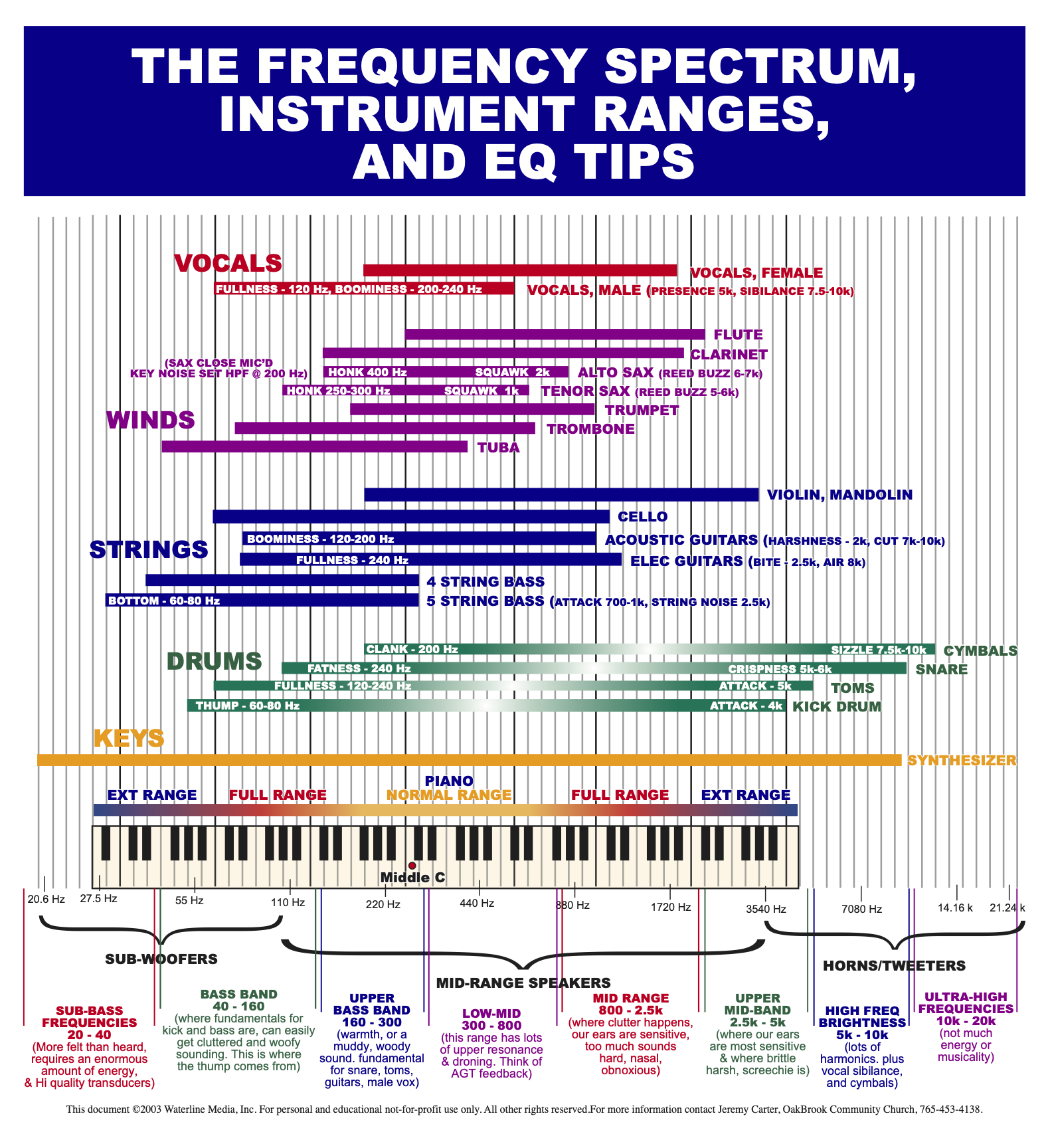

Instrument Sound Frequency Ranges

Figure: EQ chart showing frequency ranges of common instruments. This chart helps inform the instrument-specific signal processing modules used in the project.

Time synchronization bewteen different devices has also been done before. This project uses time synchronization and characterization stategies presented in lecture. It also uses the NTP protocol to synchronize the time between laptop and embedded device.

3. Technical Approach

This project integrates real-time audio signal analysis, predictive modeling, and robust networked execution to achieve tightly synchronized lighting responses to live music. Audio is captured and analyzed on a host laptop using digital signal processing (DSP) methods, percussive events are detected and predicted ahead of time, and commands are transmitted to an embedded device for precise cue execution. Key technical elements include low-latency streaming pipelines, time synchronization using NTP/SNTP protocols, prediction of future events to offset network delays, and resource-conscious event scheduling on the Arduino Nano ESP32. Each stage of the system is optimized to minimize timing errors and maximize reliability, ensuring a seamless translation from audio events to tightly choreographed lighting cues.

3.1 System Architecture

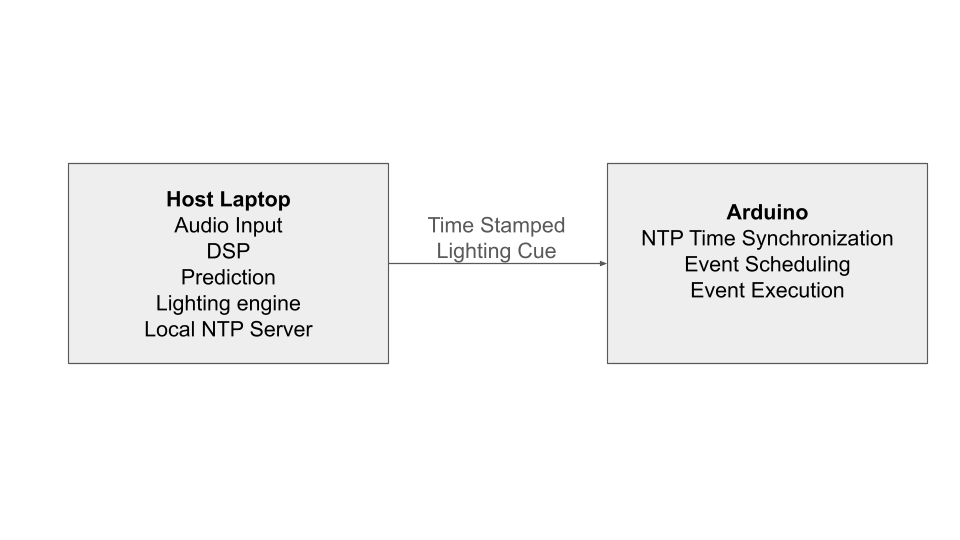

System Architecture Diagram

The system consists of two main components: a host laptop that performs audio analysis and prediction, and an Arduino Nano ESP32 embedded device that executes lighting cues. Communication between these components occurs via MQTT, and time synchronization is maintained through an NTP server running on the host laptop.

Host Laptop Components:

Arduino Nano ESP32 Components:

The system architecture follows a producer-consumer pattern where the host laptop produces predicted events with absolute timestamps, and the Arduino consumes and executes these events at the scheduled times. This design allows the system to compensate for network latency by scheduling events in advance.

3.2 Data Pipeline

Data from the host laptop to the embedded device.

3.2.1 Host Laptop Data Processing

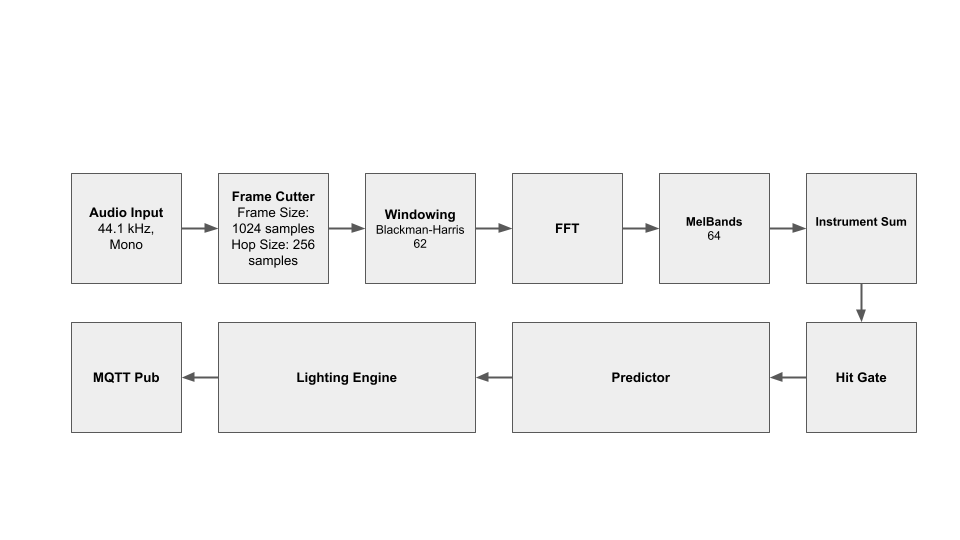

Host Laptop Data Processing Pipeline

The audio processing pipeline operates on streaming audio data without requiring pre-analysis of songs. The pipeline processes audio in frames and extracts instrument-specific information to detect percussive events. The complete C++ code for the real-time streaming pipeline is available here: src/cpp/ess_stream/src/streaming_pipe.cpp. For a detailed explanation of the Essentia processing flow, see Section 3.4.1.

Audio Input Stage
Frame Processing Stage

All frame processing algorithms are prebuilt Essentia building blocks chosen to get basic frequency information from the signal.

Instrument Detection Stage
Prediction and Command Generation Stage

3.2.2 Embedded Device Data Processing

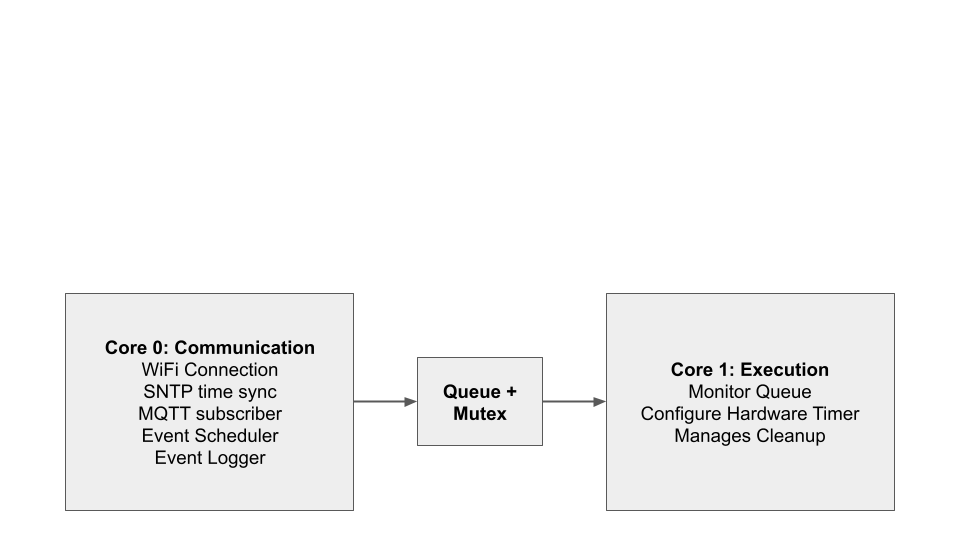

Arduino Data Processing

The embedded device (Arduino Nano ESP32) receives lighting commands via MQTT and executes them at precise times using hardware timer interrupts. The system uses a dual-core architecture to separate communication and execution tasks, ensuring low-latency event scheduling while maintaining reliable network connectivity. The complete implementation is available in src/cpp/arduino/EmbeddedDevice/src/main.cpp.

MQTT Message Reception and Parsing

The parsed information is then used to schedule an event.

Event Scheduling
Event Execution
Resource Synchronization

The system uses three mutex-protected resources for safe inter-core communication:

3.3 Algorithm / Model Details

Algorithm details are mostly explained in the data flow section. Key algorithms are explained as follows:

Additionally there are simple algorithms to convert between local time and unix time. This is done on laptop converting the relative essentia time since start to unix time. It is also done on the embedded device to turn unix timed commands to local micros() time.

3.4 Hardware / Software Implementation

3.4.1 Essentia Streaming Processing Flow

As explained above essentia is an Open-source library and tools for audio and music analysis. It is built from source at essentia. Essentia’s streaming mode uses a data-flow oriented architecture where algorithms are connected through sources and sinks, forming a directed graph that processes audio data incrementally. Unlike standard mode which processes entire audio files at once, streaming mode processes data frame-by-frame as it becomes available, making it ideal for real-time audio analysis. Algorithms communicate through typed sources and sinks. Sources produce data (e.g., Source<Real> for audio samples, Source<vector<Real>> for feature vectors), while sinks consume data (e.g., Sink<Real>, Sink<vector<Real>>). Connections are made using the >> operator: algorithm->output("name") >> otherAlgorithm->input("name").The streaming system uses a pull-based consumption model. When a sink requests data, the scheduler traces back through the connection graph to find the source and executes all intermediate algorithms in the correct order to produce the requested data. This ensures efficient processing and automatic handling of dependencies.

3.4.2 Arduino Device

The embedded device uses an Arduino Nano ESP32, which is based on the ESP32-S3 system-on-chip (SoC). This board provides dual-core processing, WiFi connectivity, and precise timing capabilities required for real-time event scheduling and execution. It has 14 GPIO pins and supports PWM, SPI, UART, I²C, and I²S to provide for a wide range of event execution. The ESP32-S3’s dual-core architecture enables separation of communication and execution tasks which ensures that network communication delays do not affect the precision of event execution timing. The ESP32-S3 runs FreeRTOS, providing: mutexes, semaphores, queues for inter-task communication, and configurable priorities (0-25, higher number = higher priority). It also conatins built-in ESP-IDF MQTT client library (mqtt_client.h) and SNTP client for time synchronization (esp_sntp.h).

3.4.3 Time Synchronization

Time synchronization is performed by creating and connecting to a local NTP server on the host laptop. This is done using the package chronyd to setup and run a server. The chronyd configuration file is availble here: chrony.conf. It is run by using the command:

% sudo /opt/homebrew/sbin/chronyd -f src/thirdParty/chrony.conf -d -x

The -x option denotes that the server will not try to control the system clock. This prevents the system clock from iterefering with the local NTP server timing which could create jumps and timing disagreements.

3.4.4 MQTT Communication

Communication between host laptop and embedded device was performed using the MQTT protocol with a pub/sub architecture. The system uses Eclipse Mosquitto as the MQTT broker, running locally on the host laptop at. The broker configuration is available in src/thirdParty/mosquitto.conf. It is run using the command:

mosquitto -c src/thirdParty/mosquitto.conf -v

The -v option is for verbose output which allows the user to view the connections and messages being sent across the network.

All messages use JSON format for structured data exchange. The MQTT publisher is implemented as a custom Essentia streaming algorithm (MQTTPublisher) in src/cpp/ess_stream/src/mqtt_publisher.cpp. It uses the Paho MQTT C++ client library (paho-mqttpp3) for asynchronous message publishing. The embedded device uses the ESP-IDF MQTT client library (mqtt_client.h) for subscribing to topics. The implementation is in src/cpp/arduino/EmbeddedDevice/src/main.cpp. They communicate together using a publisher subscriber architecture. This pub/sub architecture decouples the host laptop (producer) from the embedded device (consumer), allowing the system to handle network latency by scheduling events in advance with absolute timestamps.

3.4.5 Test Flow

There are 2 diffferent tests run to determine the performance of the system. The first test that runs the entire data pipeline and gathers information on the accuracy of the hit gate, predictor, and event execution. The second being the network latency and clock offset test which tests the communcation and time synchronization between the host laptop and embedded device.

Ground Truth Annotation

To create ground truth time steps, aided manual data annotation was performed. A given song was first run through the demucs program, to seperate the music into its instrument components. This was done using kick_only_demucs.py which seperates a .wav file into the bass, drum, vocal, and other components of a song. It then attempts to analyze the individual components of the song and provides a starting point for ground truth timestamps. Then the song is listened to and further annoted with the correct timestamps using the seperated stems.

Full Pipeline Test

The full pipeline test evaluates the end-to-end accuracy of the system by comparing detected hits, predictions, and executed events against manually annotated ground truth data. This test measures the accuracy of hit detection, prediction generation, and event execution timing. Manually annotated kick drum hit times are stored in JSON files (e.g., testData/dontYouWorryChild/GT_dont_you_worry.json) containing arrays of timestamps for each instrument.

To run this test the NTP server MQTT broker are run on the host laptop. The arduino is connected to the same network as the host laptop. The python logging file is run to capture actual execution time on the embedded device.

The test audio file is played on the host laptop through system audio, which is captured by BlackHole virtual audio device and routed to the Essentia pipeline. During the test the GateLoggerSink algorithm (src/cpp/ess_stream/src/gate_logger_sink.cpp) logs all hit gate firings and predictions to a log. Each hit entry contains frame number, audio time, wall clock time. Each prediction entry contains predicted time, confidence intervals, and instrument. Sent lighting commands are logged by The MQTTPublisher algorithm (src/cpp/ess_stream/src/mqtt_command_logger.cpp) command, writing the command exectuion times to a log. The embedded device publishes execution logs to MQTT topic beat/events/execution_log, which are captured by event_execution_logger.py and written to CSV files and contain expected vs actual event execution timings

The analysis is performed using hits_mqtt_comparison.py, which: Extracts instrument timings from JSON ground truth files. Parses log files for hit and prediciton timings. Calculates an alignment offset by matching the first detected hit to the first ground truth hit, accounting for audio start time differences.For each test set (hits, predictions, executions), matches timings to ground truth within a tolerance window, finding the closest ground truth hit for each detected/predicted/executed event.

Aditionally, analyze_kicks.py is used to compare the expected vs actual event execution timings from the embedded device.

Network Latency and Clock Offset Test

The network latency and clock offset test measures the communication performance and time synchronization accuracy between the host laptop and embedded device. This test uses MQTT request-response patterns to measure round-trip latency and clock offset. The Arduino firmware is compile with the ENABLE_LATENCY_TEST flag enabled. Then test_arduino_latency_sync (src/cpp/ess_stream/src/test_arduino_latency_sync.cpp) is run. The test sends timestamped messages the arduino T1, which then a time stamps and message T2/3 and then the message is sent pack to host, T4. Latency and offset are calculated from these timestamps. Results are printed to console with formatted statistics. Since the arduino echos straight back to the host, T2 and T3 are assumed equal and as such latency and delay are the same. Latency is given by Latency = T4-T1 while delay is given by Delay = (T4-T1)-(T3-T2). Offset is given by Offset = ((T2-T1)+(T3-T4))/2 and cancels out symmetric network delay by averaging the forward and reverse path time differences. As such for the offset reporting, samples with large latency (>20ms) are disregarded as they violate the assumed symmetric delay.

3.5 Key Design Decisions & Rationale

3.5.1 Audio Analysis Framework

The choice of Essentia as the audio analysis framework was driven by several critical requirements for real-time percussive event detection. Essentia provides a comprehensive, open-source C++ library specifically designed for audio and music information retrieval, making it well-suited for this application. Other beat detection algorithms were considered such as BeatNet however essentia was chosen due to its flexibility for analysis and customization.

3.5.2 Dual Core Architecture

The Arduino Nano ESP32 was chosen due to its a dual-core ESP32-S3 processor and ability to utilize popular modern communication and sychronization methods. The system architecture explicitly separates communication and execution tasks across the two cores to achieve both reliable network communication and precise timing for event execution.

3.5.3 Hardware Interrupts

The system does not use hardware interrupts for precise event execution timing, and instead uses than polling-based approaches that check the current time in a loop. This design decision is was made due to the ease of implementation and the ability to have tight polling on a single core. This decision was confirmed with the results from the on-device execution accuracy test

4. Evaluation & Results

Evaluation is performed across four dimensions. First, the accuracy of hit detection and prediction is measured against manually annotated ground truth data to establish a baseline for system performance. This includes analyzing the number of detected and predicted hits compared to the ground truth, as well as timing accuracy metrics such as mean error, standard deviation, and maximum error. Second, the on-device execution accuracy is assessed by comparing the difference between scheduled event times and actual execution times, measuring how precisely the embedded device can execute events at their scheduled timestamps. Third, the accuracy of the time synchronization and communication system is evaluated by measuring mean clock offset, network delay, and round-trip latency between the host laptop and embedded device Finally, qualitative evaluation is performed through visual observation of the device’s LED lighting response to detected hits, providing real-world validation of the system’s end-to-end performance.

4.1 Accuracy of Hit Detection and Prediction

Accuracy of hit detection and prediction was measured for the kick drum detection and prediction. This is done by comparing the ground truth to detected and predicted timestamps as described in the pipeline test section. Results for 2 songs were gathered due to the labor intensive manual ground truth generation. Below you will find results for “Call on Me” by Eric Prydz and “Don’t You Worry Child” by Swedish House Mafia. These songs were chosen for difference in kick lines. “Call on Me” has a very pronounced easy to detect kick line whereas “Don’t You Worry Child” has a much less pronounced and subtle kick line. In the results tolerances of 40ms and 250ms are used to compare results. 40ms is used as the target tolerance and 250ms is used as a marker within the BPM of the songs to not get missmatched beats. Hit is the timing of the concurrent detected hit, GT is the ground truth of hits, and Pred is the timing of the predicted hits.

4.1.1 Table: Accuracy Results for “Call on Me”

Comparison Tolerance Matched Total 1 Total 2 F1 Mean Std Max
HitvsGT 40 ms 216 243 216 0.9412 20.23 ms 9.13 ms 39.18 ms
PredvsGT 40 ms 78 201 216 0.3741 16.68 ms 9.90 ms 38.51 ms
HitvsPred 40 ms 82 243 201 0.3694 13.15 ms 11.30 ms 37.73 ms
HitvsGT 250 ms 216 243 216 0.9412 20.23 ms 9.13 ms 39.18 ms
PredvsGT 250 ms 163 201 216 0.7818 74.85 ms 71.17 ms 233.68 ms
HitvsPred 250 ms 173 243 201 0.7883 72.88 ms 72.22 ms 246.49 ms

4.1.2 Table: Accuracy Results for “Don’t you Worry Child”

Comparison Tolerance Matched Total 1 Total 2 F1 Mean Std Max
HitvsGT 40 ms 14 241 284 0.0533 10.13 ms 5.52 ms 17.97 ms
PredvsGT 40 ms 20 177 284 0.0868 18.74 ms 13.23 ms 38.76 ms
HitvsPred 40 ms 23 241 177 0.1100 20.63 ms 12.30 ms 39.80 ms
HitvsGT 250 ms 144 241 284 0.5486 145.04 ms 72.12 ms 238.30 ms
PredvsGT 250 ms 99 177 284 0.4295 114.42 ms 71.33 ms 234.86 ms
HitvsPred 250 ms 126 241 177 0.6029 120.51 ms 66.56 ms 238.56 ms

4.2 On-Device Execution Accuracy

During the full pipeline test, on device accuracy is measured by echoing the on device scheduled and on device actual time back to the host laptop for later processing. Results for this test can be seen below.

4.2.1 Table: Reuslts of On Device Execution Accuracy

Mean Median Minimum Maximum Std Dev
0.802417 ms 0.775933 ms 0.340939 ms 4.396915 ms 0.417035 ms

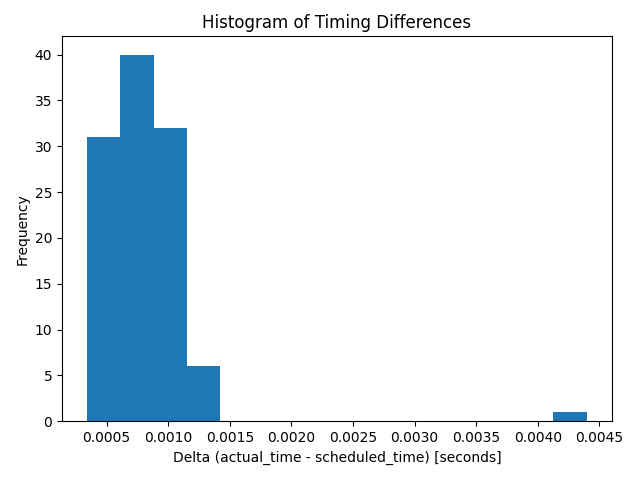

On-Device Execution Timing Results

4.3 Accuracy of Time Synchronization

The network latency and clock offset is tested as described in Network Latency and Clock Offset Test. This test was performed for 1000 samples with delay samples only being used for delay less than 20 ms (41 samples in given test). In the current test setup the embedded device and host laptop were connected to a mobile phone hotspot. Results may vary depending on the network used to connect devices.

4.3.1 Table: Time Latency and Offset Results

Samples Metric Minimum Maximum Mean Std Dev
1000 Latency 20.075 ms 472.462 ms 187.171 ms 81.222 ms
41 Offset 0.295 ms 15.075 ms 5.984 ms 5.655 ms

5. Discussion & Conclusions

5.1 What Worked Well

Several key components of the system demonstrated successful performance. The core hypothesis that percussive events can be predicted far enough in the future to circumvent network delay was validated. The Kalman filter-based period and phase estimation successfully generated predictions with reasonable timing accuracy, particularly for songs with strong periodic patterns. The NTP-based time synchronization between the host laptop and embedded device achieved a mean clock offset of 5.984 ms with a standard deviation of 5.655 ms. This level of synchronization was sufficient for the application’s timing requirements, allowing events to be scheduled with sub-10ms precision. The actual timing synchronization may be even better than this due to asymetric delays and the use of T2 = T3 in the offset calculation. The embedded device demonstrated excellent execution timing accuracy, with a mean execution delay of only 0.802 ms and a median of 0.776 ms. This indicates that once events are scheduled, the Arduino Nano ESP32 can execute them with high temporal precision. For songs with clear, periodic percussive patterns like “Call On Me,” the hit detection achieved an F1 score of 0.9412 with a mean timing error of 20.23 ms. The instrument-specific frequency range analysis (kick: 40-75 Hz, snare: weighted frequency bands) proved effective for detecting percussive onsets in well-structured music.

5.2 What Didn’t Work

Several challenges emerged during development and evaluation. While prediction was feasible, the accuracy was limited. Prediction-to-ground-truth F1 scores ranged from 0.3741 (40ms tolerance) to 0.7818 (250ms tolerance) for “Call On Me,” and were even lower for “Don’t You Worry Child” (0.0868 to 0.4295). The system’s reliance on the assumption of periodic hits means it struggles with music that has irregular or complex rhythmic patterns. Aditionally, on visual inspection, the system misses many hits and does not look very good overall. Performance varied significantly between songs. “Don’t You Worry Child” showed poor hit detection performance (F1: 0.0533-0.5486 depending on tolerance), suggesting that the current instrument detection is not robust across different musical styles and production techniques. Additionally, only kick and snare detection are implemented, with kick being well-tuned and snare detection being untuned. The weighted frequency sum approach for snare (180-280 Hz, 350-600 Hz, 2-5 kHz, 6-10 kHz) needs further refinement to improve accuracy.

5.3 Future Work

If given more time, several areas would benefit from further exploration. Implement and tune hit detection for additional instruments beyond kick and snare. Improve the snare detection tuning and develop detection methods for hi-hats, cymbals, and other percussive elements. This would make the system more versatile and applicable to a wider range of music. Enhance the Kalman filter-based predictor or explore more robust prediction algorithms. Consider machine learning approaches that could learn patterns from historical hit data, potentially handling non-periodic rhythms better than the current periodic assumption. Develop a more sophisticated lighting engine that is better tuned and incorporates more factors. Tune the minimum latency and confidence thresholds to something that actually looks good visually. Add musical features like key, total energy, and harmonic content. Include more complex actions beyond simple on/off commands like dynamic intensity and color mapping based on musical characteristics. Replace the current loop-based event scheduler on the Arduino with precise hardware timer interrupts. This would provide more accurate event execution timing and reduce the variability in execution delay. Create ground truth annotations for a larger, more diverse set of songs spanning multiple genres by potentially Developing automated evaluation metrics that can assess visual synchronization quality.

This work demonstrates the feasibility of predictive percussive event detection for synchronized lighting, but significant improvements in prediction accuracy, instrument coverage, and robustness would be needed for a production-ready system. This also shows the reason for general use of both hardwired and reactive systems in the industry.

6. References

6.1 Audio Processing Libraries

Essentia
Bogdanov, D., Wack, N., Gómez Gutiérrez, E., Gulati, S., Herrera Boyer, P., Mayor, O., … & Serra, X. (2013). Essentia: An open-source library for sound and music analysis. Proceedings of the 14th International Society for Music Information Retrieval Conference (ISMIR), 493-498.

BeatNet
Hydari, M. J., & Leistikow, R. (2022). BeatNet: A Real-Time Beat Tracking System. IEEE/ACM Transactions on Audio, Speech, and Language Processing, 30, 2899-2909.

madmom
Böck, S., Korzeniowski, F., Schlüter, J., Krebs, F., & Widmer, G. (2016). madmom: A new Python audio and music signal processing library. Proceedings of the 24th ACM International Conference on Multimedia, 1174-1178.

Demucs
DĂ©fossez, A., Usunier, N., Bottou, L., & Bach, F. (2019). Music source separation in the waveform domain. arXiv preprint arXiv:1911.13254.

librosa
McFee, B., Raffel, C., Liang, D., Ellis, D. P., McVicar, M., Battenberg, E., & Nieto, O. (2015). librosa: Audio and music signal analysis in python. Proceedings of the 14th Python in Science Conference, 18-25.

PyAudio
PortAudio Python bindings for cross-platform audio I/O.

PortAudio
Bencina, R., & Burk, P. (2001). PortAudio—an open source cross-platform audio API. Proceedings of the International Computer Music Conference.

6.2 Scientific Computing Libraries

NumPy
Harris, C. R., Millman, K. J., van der Walt, S. J., Gommers, R., Virtanen, P., Cournapeau, D., … & Oliphant, T. E. (2020). Array programming with NumPy. Nature, 585(7825), 357-362.

SciPy
Virtanen, P., Gommers, R., Oliphant, T. E., Haberland, M., Reddy, T., Cournapeau, D., … & SciPy 1.0 Contributors. (2020). SciPy 1.0: fundamental algorithms for scientific computing in Python. Nature Methods, 17(3), 261-272.

pandas
McKinney, W. (2010). Data structures for statistical computing in python. Proceedings of the 9th Python in Science Conference, 445, 51-56.

Numba
Lam, S. K., Pitrou, A., & Seibert, S. (2015). Numba: A LLVM-based Python JIT compiler. Proceedings of the Second Workshop on the LLVM Compiler Infrastructure in HPC, 1-6.

Cython
Behnel, S., Bradshaw, R., Citro, C., Dalcin, L., Seljebotn, D. S., & Smith, K. (2011). Cython: The best of both worlds. Computing in Science & Engineering, 13(2), 31-39.

6.3 Visualization Libraries

matplotlib
Hunter, J. D. (2007). Matplotlib: A 2D graphics environment. Computing in Science & Engineering, 9(3), 90-95.

seaborn
Waskom, M. L. (2021). seaborn: statistical data visualization. Journal of Open Source Software, 6(60), 3021.

Vispy
Campagnola, L., & Peixoto, T. C. (2014). Vispy: Harnessing the GPU for fast, high-level visualization. Python in Science Conference (SciPy).

PyQt6
Riverbank Computing. PyQt6 - Python bindings for the Qt application framework.

6.4 Communication & Networking Libraries

Eclipse Paho MQTT (Python)
Eclipse Foundation. Paho MQTT Python client library.

Eclipse Paho MQTT C++
Eclipse Foundation. Paho MQTT C++ client library.

ZeroMQ (cppzmq)
Hintjens, P. (2013). ZeroMQ: Messaging for Many Applications. O’Reilly Media.

pyzmq
Python bindings for ZeroMQ.

ntplib
Python library for NTP time synchronization.

6.5 MQTT Broker & Time Synchronization

Mosquitto
Eclipse Mosquitto - An open source MQTT broker.

chrony
chrony - A versatile implementation of the Network Time Protocol (NTP).

6.6 Embedded Systems & Arduino Libraries

ArduinoJson
Benoit Blanchon. ArduinoJson - JSON library for Arduino and embedded C++.

Arduino ESP32
Espressif Systems. Arduino core for ESP32.

FreeRTOS
FreeRTOS - Real-time operating system for microcontrollers.

PlatformIO
PlatformIO - Professional collaborative platform for embedded development.

6.7 Development Tools

Cursor AI Assistant
Cursor AI (Auto) - AI-powered coding assistant integrated into the Cursor IDE, used for code generation, documentation, and development assistance throughout this project.

Chat GPT GPT-5.1
OpenAI. GPT-5.1 - Large language model used for automated documentation and development assistance.

6.9 Additional Dependencies

All Python dependencies are listed in requirements.txt with version specifications. Key dependencies include:

7. Supplementary Material

7.a. Datasets

The two ground truth data sets created are availible in testData/*/GT_*.json. The associated testing results are also availible in their respective folders in testData.

7.b. Software

All software libraries, frameworks, and tools used in this project are comprehensively cited in Section 6: References. This includes:

For complete citations, version information, and links, please refer to Section 6: References. All Python dependencies with version specifications are listed in requirements.txt.
